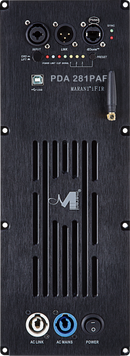

PASCAL W/ MARANI PDA281PF 2-Channel FIR Amplifier AUTHORIZED DEALER!!!
Power & Amplifier section
| Number of Channels |
2 |
| Max Output Power |
280W + 100W @4ohms |
| Output Circuitry |
Class D - full bandwith PWM modulator with ultra low distortion |
| THD+N |
<0.003% |
| Signal To Noise Ratio |
>105 dB (A-weighted, 20 Hz - 20 kHz, 8Ω load) |
| Frequency Response |
20Hz ~ 20kHz; -0.5dBu at 20Hz and 20kHz |
| Power Supplies |
Switch mode power supply with PFC (Power Factor Correction) |
| Operating Range |
Universal Mains, AC 110-240V |
| Protections |
Over-Current, Over/Under Voltage, Output DC and Over-Temperature, Short Circuit Protection |
| Analog Input |
1 x XLR electronically balanced, +12dB |
| Analog Output |
1 x XLR electronically balanced, +10dB |
| AD & DA Converters |
24bit |
| Frequency Response (DSP) |
20 Hz - 20 KHz; -0.5dBu at 20 Hz and 20 kHz |
DSP & Processing
| DSP Engine |
MARANI® DSP |
| DSP Resolution |
24bit (data) x 24 bit (coeff.),54bit accumulation registers, 96 bit precision on intermediate processing data |
| Parametric Equalization |
10 filters on each input channel
8 filters on each output channel |
| Filter Type |
Bell, Low/High Shelving Variable Q, Notch Filter |
| Filter Gain |
From -15dBu up to +15dBu by 0.5dBu resolution steps |
| Center Frequency |
Selectable with 1Hz resolution step from 20Hz up to 20kHz |
| Filter Q/BW |
Bell Type: Q from 0.4 up to 128
Lo/Hi Shelving: Q from 0.1 up to 5.1
Notch Filter: Q from 4 up to 104 |
| Crossover Section FIR |
Type: bypass, HP, LP, BP, and custom
Freq. from 250 to 20kHz
Taps up to 512, Attenuation up to 120dB
Window type: Rect/Kaiser/Sinc/Hamming/ Hanning/Blackman/Nuttal/Kaiser-Bessel/Sine |
| Crossover Section IIR |
HP/LP filter with slope up to -24dB/octave type Butterworth, Bessel, Linkwitz Riley |
| Input RMS Compressor |
Threshold from -18 to +12dBu
Ratio: 2:1 ~ 32:1;Knee: 0~100%
Release from 100 to 15k ms;Attack time from 0.1 to 2k ms
Make up from -12 to +12dB |
| Output Peak Limiter |
Threshold from -18dBu up to +12dBu
Release time from 0.1ms up to 5ms
Attack time from 1ms up to 1k ms |
| Delay |
250.998ms for input channel and 40.998ms for output channel |
General
| User Preset |
3 |
| Front Panel |
PRESET button
Green LED (Signal); Red LED (Clip, Power);
Blue LED (Limit); Yellow-Green(Preset 1/2/3)
1 x XLR female connector (Input)
1 x XLR male connector (Link Output)
1 x RJ45 (for TCP/IP or for Dante™, optional)
1 x Ground-lift toggle Switch
2 x Locking PowerCON® 20A: AC Mains (blue) - AC Link (white)
On/Off Power Switch |
| Dimensions |
132mmX355mmX65mm |
| Weight, Net / Shipping |
6.09 lbs (2.76 Kg) / 8.83 lb (4 Kg) |
|
|
